Technical Specifications

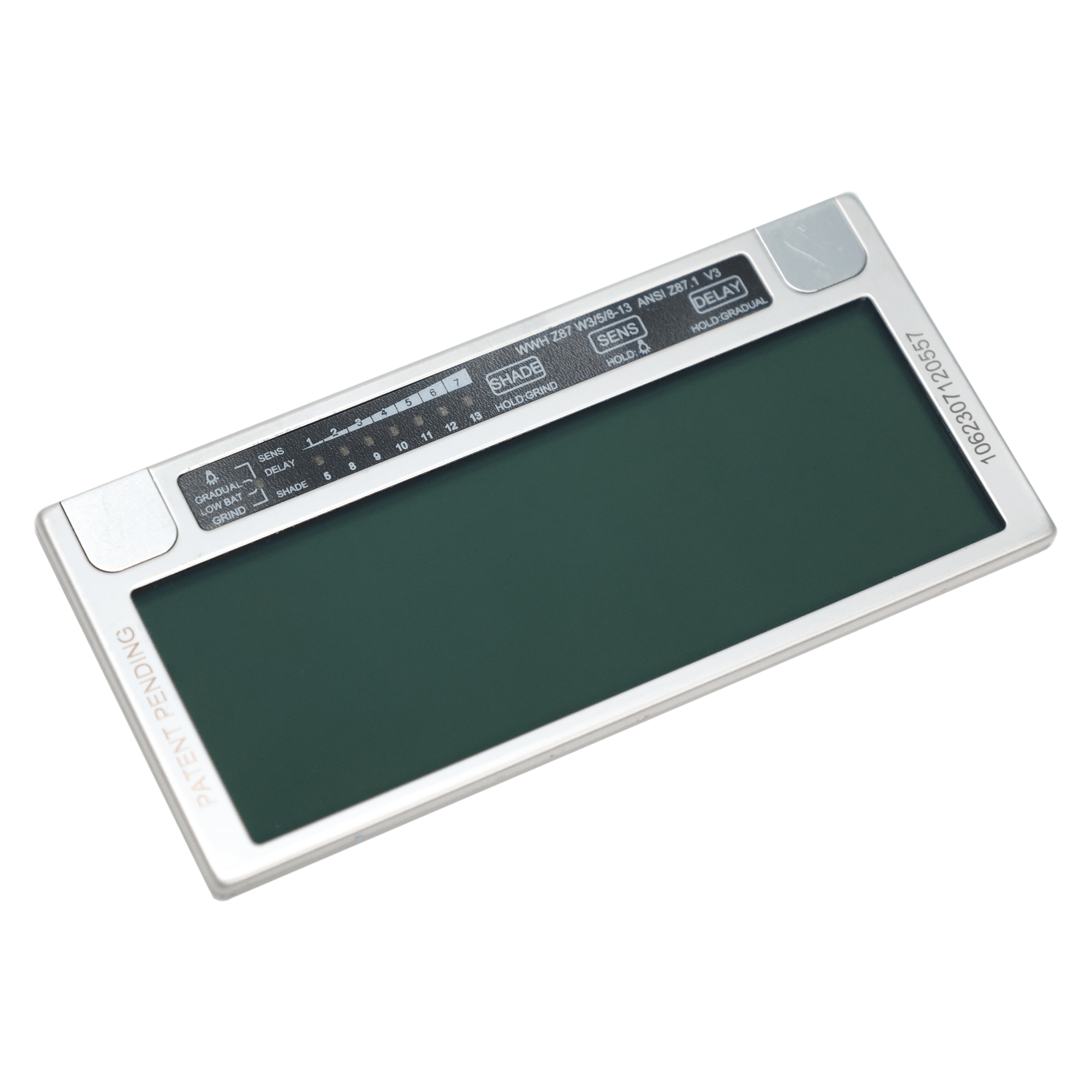

• Cartridge Size: 4.25″ x 2″ x 0.193″
• Viewing Area: 3.80” x 1.38″
• Power Supply: Solar and CR1025 Lithium battery
• Sensors: 2 independent sensors
• Switch time: Time required to switch between shades: 0.06ms
• Packaging: Individually packaged, pack of 10
• Shade: Clear state: Shade 3  –  Dark state: Shades 5 for cutting, 8-13 for welding
• Grind: Yes
• TIG capability: 2A
• Battery: Highest quality of lithium CR927

Applications

• Designed for use with welding, heating, or cutting/gouging
• Manufacturing– Architectural and Structural Metals, Mining, Agricultural, Motor Vehicles, Aerospace, Shipbuilding, and Pipelines
• Construction – Residential, Commercial, Bridges, Dams, Utilities or any other industry where welders may work
• Auto-Darkening applies change from light state to dark state when welding starts and will automatically return to light state when the arc stops
o (Fully read user manual and match your welding application to the shade indicated on the shade chart.)

Usage Instructions
Before Welding

• Check the front & back polycarbonate lenses are securely in place to protect against impact, spatter, and scratching
• Adjust headband so that the helmet is seated on the head as low as possible and near to your face. Adjust helmet angle when in the lowered position by turning headgear
• Ensure helmet shell/frame does not obstruct solar panels or sensors, doing this may cause eye injury while welding
• Check the correct operation of the filter

Additional Instructions
Do not use or open the auto-darkening filter if damaged by shock, vibration or pressure. Keep the sensors and solar cell clean. Clean the filter cartridge using a soapy water solution and soft cloth which should be damp but not saturated. Do not leave lowered in position; a bright light surface could cause the filter to darken unexpectedly. Do not use solvents or abrasive cleaning detergent. If cover lens is spattered or covered with dirt, it should be replaced immediately. Do not use the helmet without inside and outside cover lenses properly installed.
